JDiag Faslink M1 Bluetooth 4.0 BLE for IOS and Android

Product Detail

    JDiag FasLink M1 Bluetooth Device is the new product developed by JDiag Electronics Technology Co., Ltd in 2017.06, which is portable, intelligent, highly integrated multi-functional, compatible with 5 major standard protocols, support the standard OBDII, various brands vehicle diagnosis and clear the fault code, etc.

    Hardware Features:
    1. Applicable to vehicles with standard OBDII DLC after 2000 (OBDII, CAN)
    2. Bluetooth 4.0BLE module independent development, the effective distance of 20-30 meters, lighting speed search, lighting speed connection (0.5 seconds)

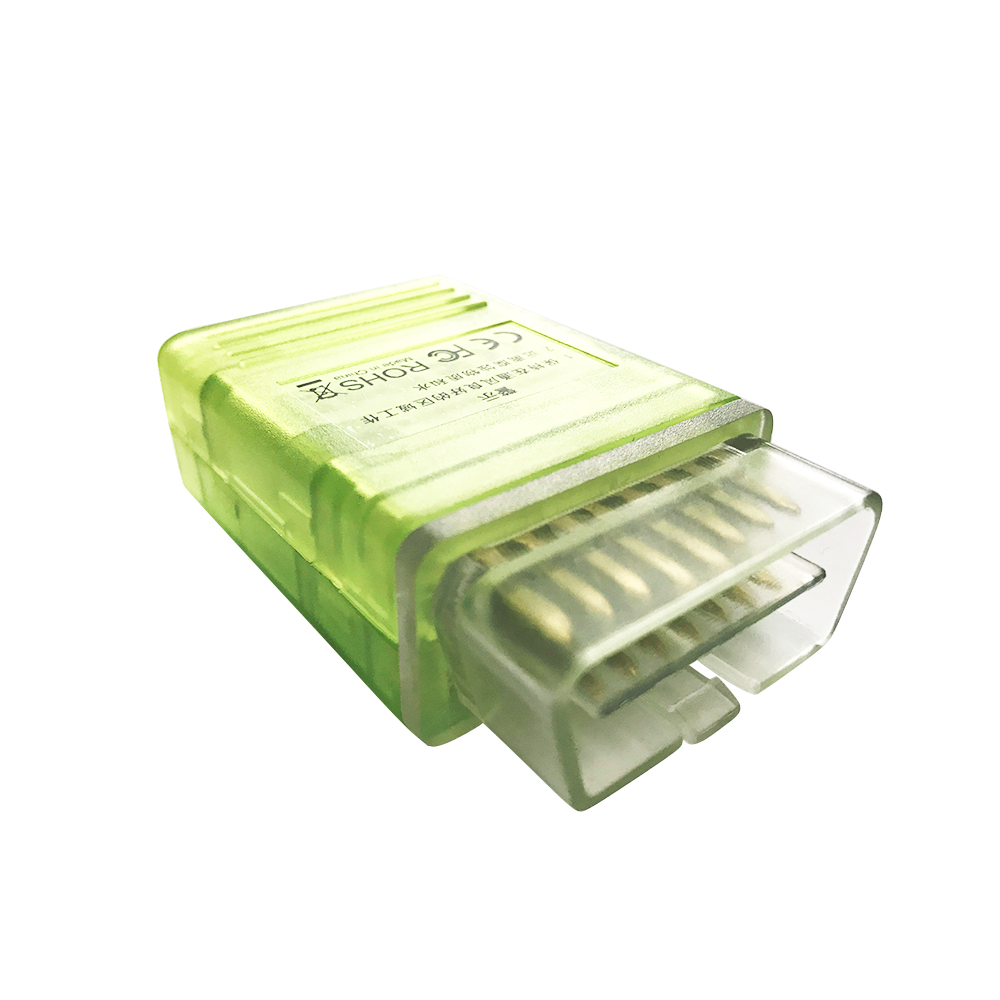

    3. Gilded OBDII pins to ensure the stable connection, faster data transfer, never rust

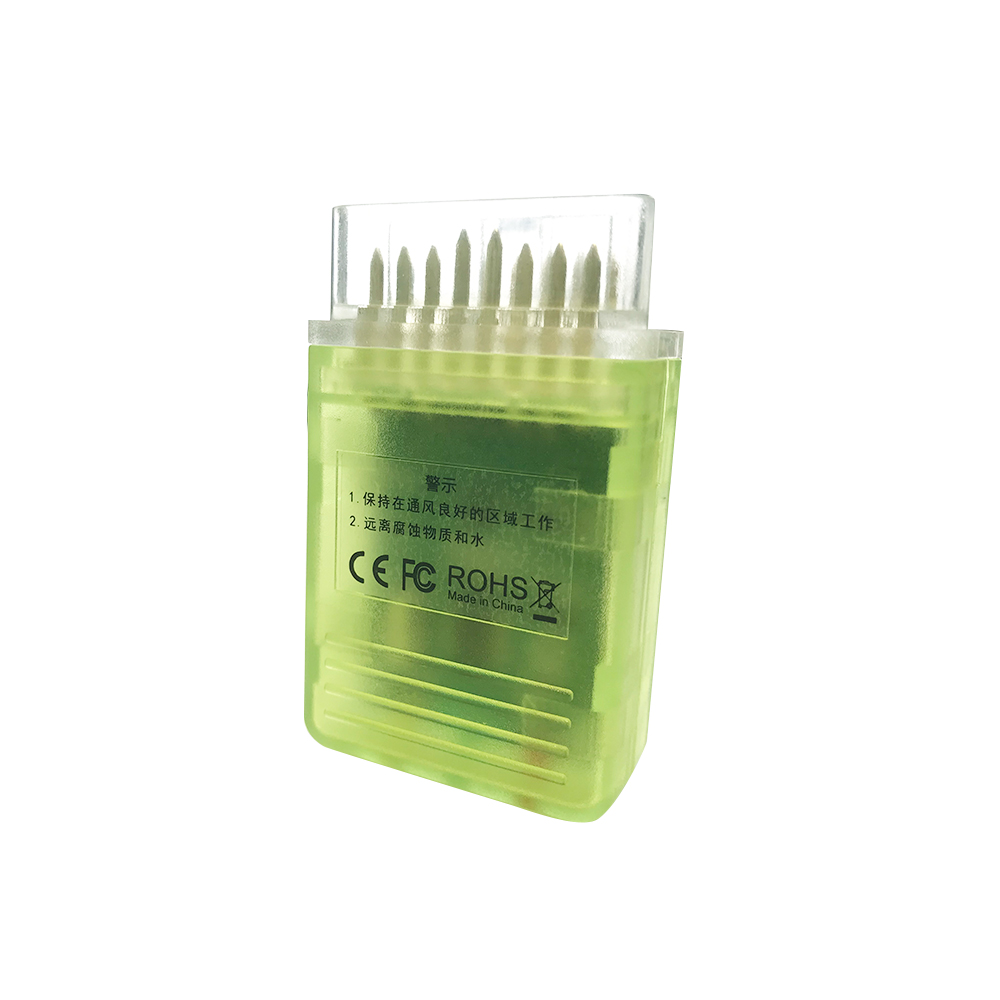

    4. Shell with environmentally friendly materials, anti-drop dust-proof scratch, no screws, double-buckle design, bite more solid
    5. Compatible with more protocols,and a wider range of baud rates, support more vehicles

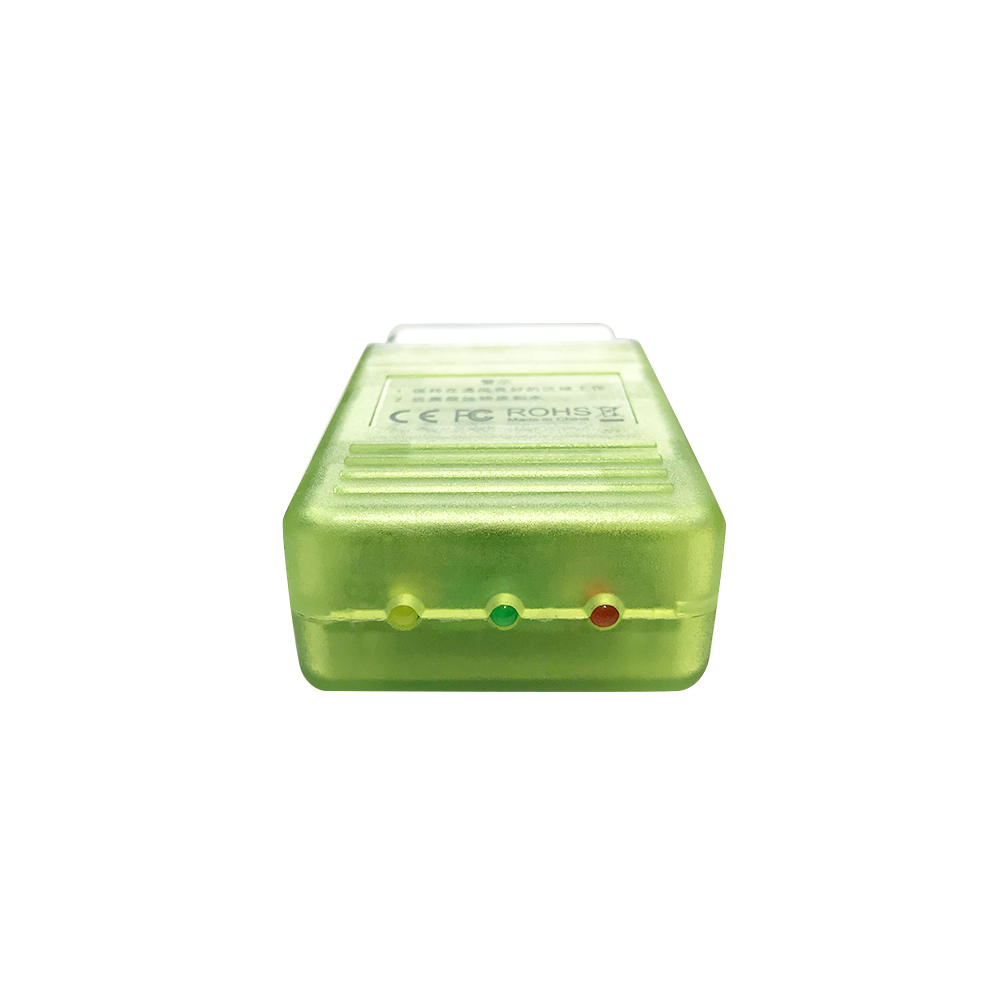

    6. LED indicator, real-time obtaining test status, data interaction status and Bluetooth connection status
    7. Electroless Nickel/Immersion Gold(ENIG) process PCB, to increase the stability of components, effectively prevent oxidation


    Software Features:
    JDiag FasLink M1 supports generic software on the market. At the same time, we developed APP for Android smart phones: JDiag FasLink, what's more we developed a WeChat program internal APP, which you can use JDias FasLink M1 with any platform OS, such as IOS, windows phone etc, only if your smart phone installed Wechat.


    iOS/Android App Download Link>>


    Android App features:
    1. Read/clear vehicle fault code, standard fault codes, brands codes (stored fault code and the pending fault code)
    2. Read the vehicle data stream, custom data stream, data stream entry custom sort (PID entries up to 200 or more)
    3. I/M Readiness function, ready test the function, real-time monitoring of the car as many as 14 kinds of sensor indicators, quickly determine the vehicle status
    4. Service maintenance functions (Service Oil reset/ service light reset/ TPMS reset/ EBP reset)
    5. DTC Lookup function, you can lookup the DTC code explanation anytime anywhere.
    6. Battery test function, detection of car battery life and provide advice
    7. Vehicle VIN code read
    8. Vehicle protocol read
    9. Vehicle calibration ID identification
    10. Vehicle calibration verification code read
    11. Vehicle protocol ID read
    12. Software hot update function
    13. Firmware upgrade function for FasLink M1 hardware
    14. Automatic license plate recognition, automatically identify the license plate by cell phone camera 15. User Center function, users can manage their own full range of products from JDiag
    15. Quick registration function, through the APP internal camera scan QR code, complete the registration / activation of products, no need to fill in information
    16. Fast feedback function, users do not need to enter the feedback information, just press send then send feedback report
    17. Multi-language Optional: English, Chinese, Japanese, German, French, Italian, Russian, Portuguese, Spanish, other languages will be updated very soon
    18. Support a variety of connections: WIFI, Bluetooth 2.0, Bluetooth 4.0
    19. Support GPS positioning function
    20. English metric units are interchangeable
    21. Built-in user manual, environmental-friendly
    22. Voice diagnostics (vehicle status can be checked at any time via voice interaction)
    23. Diagnostic report function (The software will diagnosis your car and rate it through the test result, and provide suggestions.)
    24. Supports ABS/TCM/RCM/PCM module ford mazda toyota leux, etc.
    25. 100 Meters Speeds up function, able to share with facebook, google+ twitter.



    iOS App features:
    1. Read/clear vehicle fault code, standard fault codes, brands codes (stored fault code and the pending fault code)
    2. Read the vehicle data stream, custom data stream, data stream entry custom sort (PID entries up to 200 or more)
    3. I/M Readiness function, ready test the function, real-time monitoring of the car as many as 14 kinds of sensor indicators, quickly determine the vehicle status
    4. Service maintenance functions (Service Oil reset/ service light reset/ TPMS reset/ EBP reset)
    5. DTC Lookup function, you can lookup the DTC code explanation anytime anywhere.
    6. Battery test function, detection of car battery life and provide advice
    7. Vehicle VIN code read
    8. Vehicle protocol read
    9. Vehicle calibration ID identification
    10. Vehicle calibration verification code read
    11. Vehicle protocol ID read
    12. Software hot update function
    13. Firmware upgrade function for FasLink M1 hardware
    14. Automatic license plate recognition, automatically identify the license plate by cell phone camera 15. User Center function, users can manage their own full range of products from JDiag
    15. Quick registration function, through the APP internal camera scan QR code, complete the registration / activation of products, no need to fill in information
    16. Fast feedback function, users do not need to enter the feedback information, just press send then send feedback report
    17. Multi-language Optional: English, Chinese, Japanese, German, French, Italian, Russian, Portuguese, Spanish, other languages will be updated very soon
    18. Support a variety of connections: WIFI, Bluetooth 2.0, Bluetooth 4.0
    19. Support GPS positioning function
    20. English metric units are interchangeable
    21. Built-in user manual, environmental-friendly
    22. Diagnostic report function (The software will diagnosis your car and rate it through the test result, and provide suggestions.)
    23. Supports ABS/TCM/RCM/PCM module ford mazda toyota leux, etc.
    24. 100 Meters Speeds up function, able to share with facebook, google+ twitter.

    WeChat Internal App features:

    What is Wechat?

    1. No need to install any APPs, as long as your smart phone installed WeChat program, you can use JDiag FasLink M1
    2. No phone brands or operating system limitation, Android, IOS, Windows Phone, etc. can be used
    3. No need update the software, JDiag will submit the upgrade app to WeChat, each time you open the program, automatically updated can be done within 2 seconds
    4. DTC Lookup function, you can lookup the DTC code explanation anytime anywhere.
    5. Service maintenance functions(Service Oil reset/ service light reset/ TPMS reset/ EBP reset)
    6. No need to print the diagnostic results, WeChat users can share the testing results directly to frends
    7. Read/clear vehicle fault codes (stored trouble code and pending fault code)
    8. Read the vehicle data stream, customize the live data
    9. I/M Readiness function, real-time monitoring of the sensor sensor up to 14 kinds of indicators, quickly determine the vehicle status
    10. Battery detection function, detection of car battery life and provide advice
    11. Vehicle VIN code read
    12. Vehicle protocol read
    13. Vehicle calibration ID identification
    14. Vehicle calibration verification code read
    15. Vehicle protocol ID read
    16. fault code cloud query function, the standard OBDII fault code and car trouble code can be queried
    17. Built-in user manual, environmental-friendly
    18. No network can also be used



    WeChat Internal App Get: (Please run WeChat then use QR Code scan)

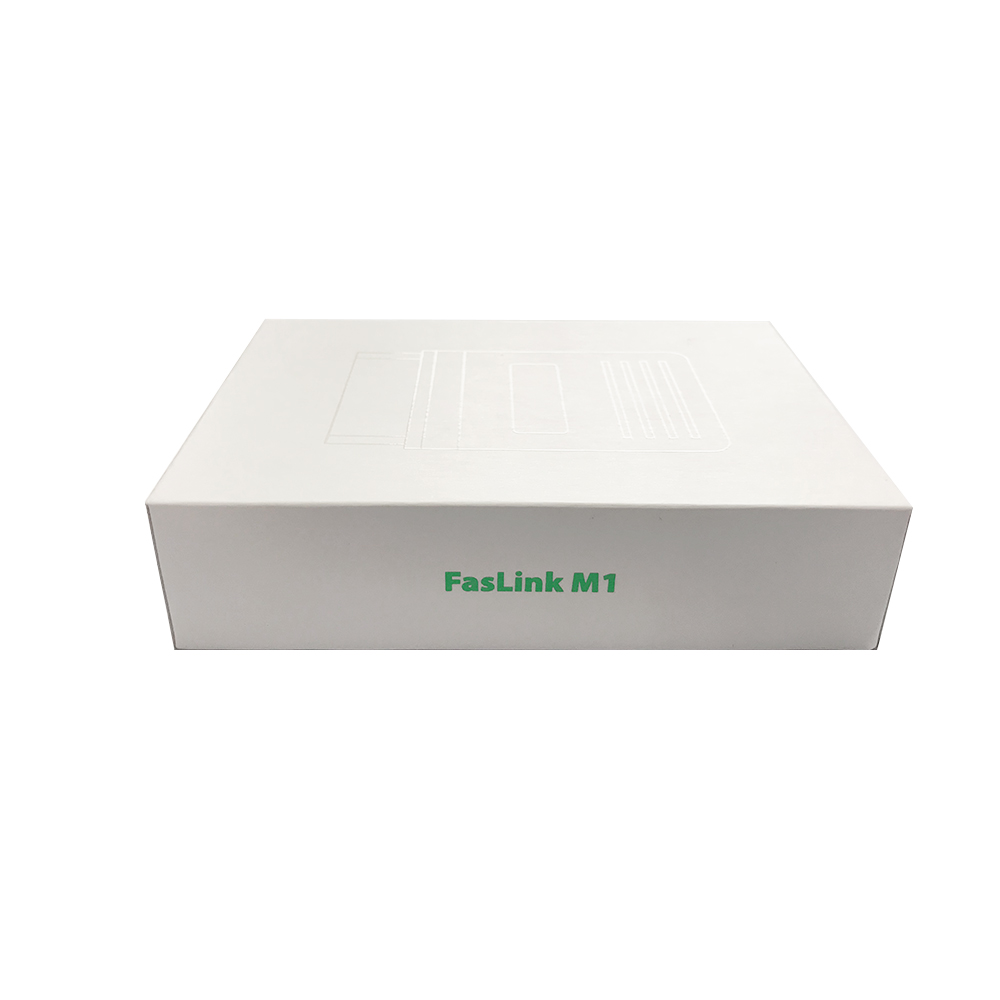

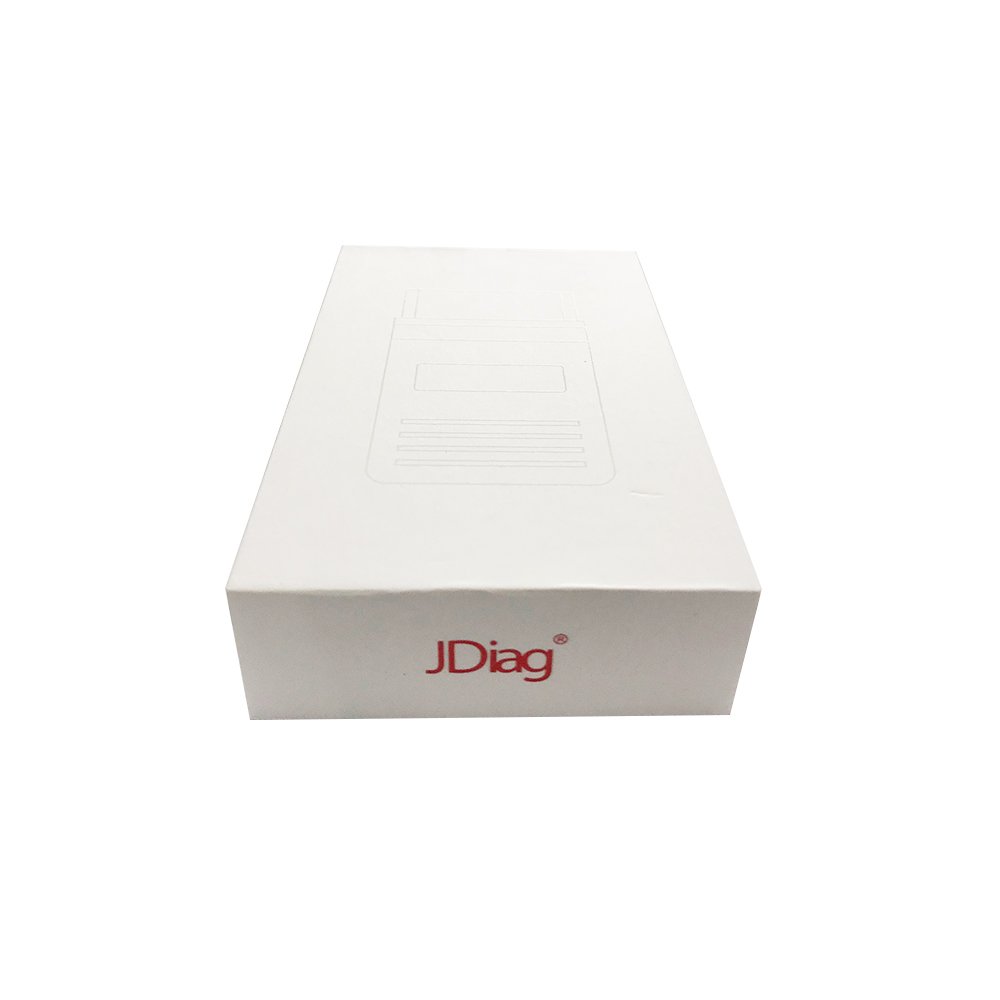

    Product Packaging Features:
    1. Product packaging materials using recyclable materials, environmental-friendly
    2. Products using UV printing technology, high-end novel
    3. Product logo Use bronzing technology
    4. Product box damping 3-6 seconds automatically fall
    5. Product external use of thermal film packaging, effective moisture, dust, water

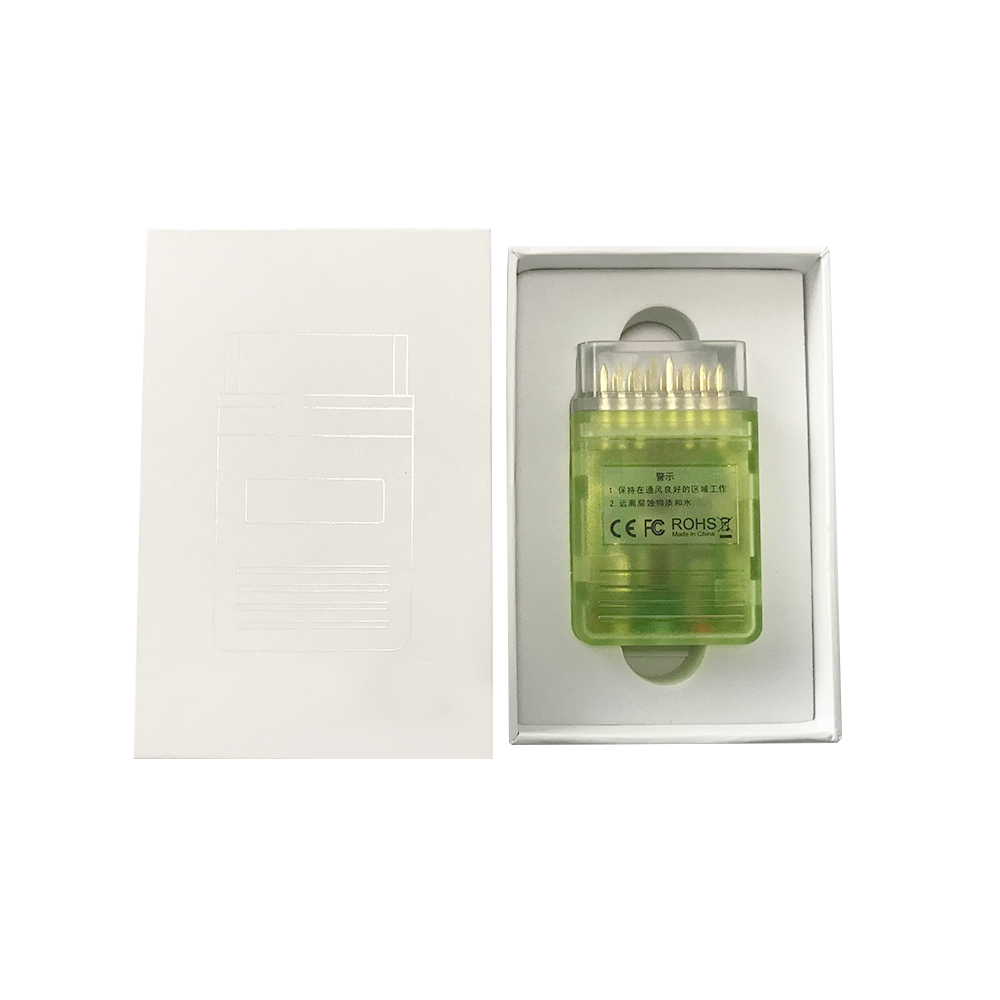

    6. FasLink M1 use environmentally friendly EVA cotton protection, anti-drop shock
    7. Packing box size: 120mm x 80mm x30mm
    8. Product packaging using mobile phone box packaging standards, simple design, generous, lightweight
    9. Product with packaging total Weight: 0.13KG


    Technical Parameters:
    Support Protocols: ISO9141-2, ISO14230-4, KWP 15765-4, SAE J1850 VPW, SAE J1850-PWM
    Minimum starting voltage: 7.9V
    Maximum operating voltage: 30V
    Working temperature: -20 ℃ ~ 40 ℃
    Storage temperature: -30 ℃ ~ 70 ℃
    Working current: 0.24A


    User Manual Download:

    FasLink M1 Android Phone User Manual
