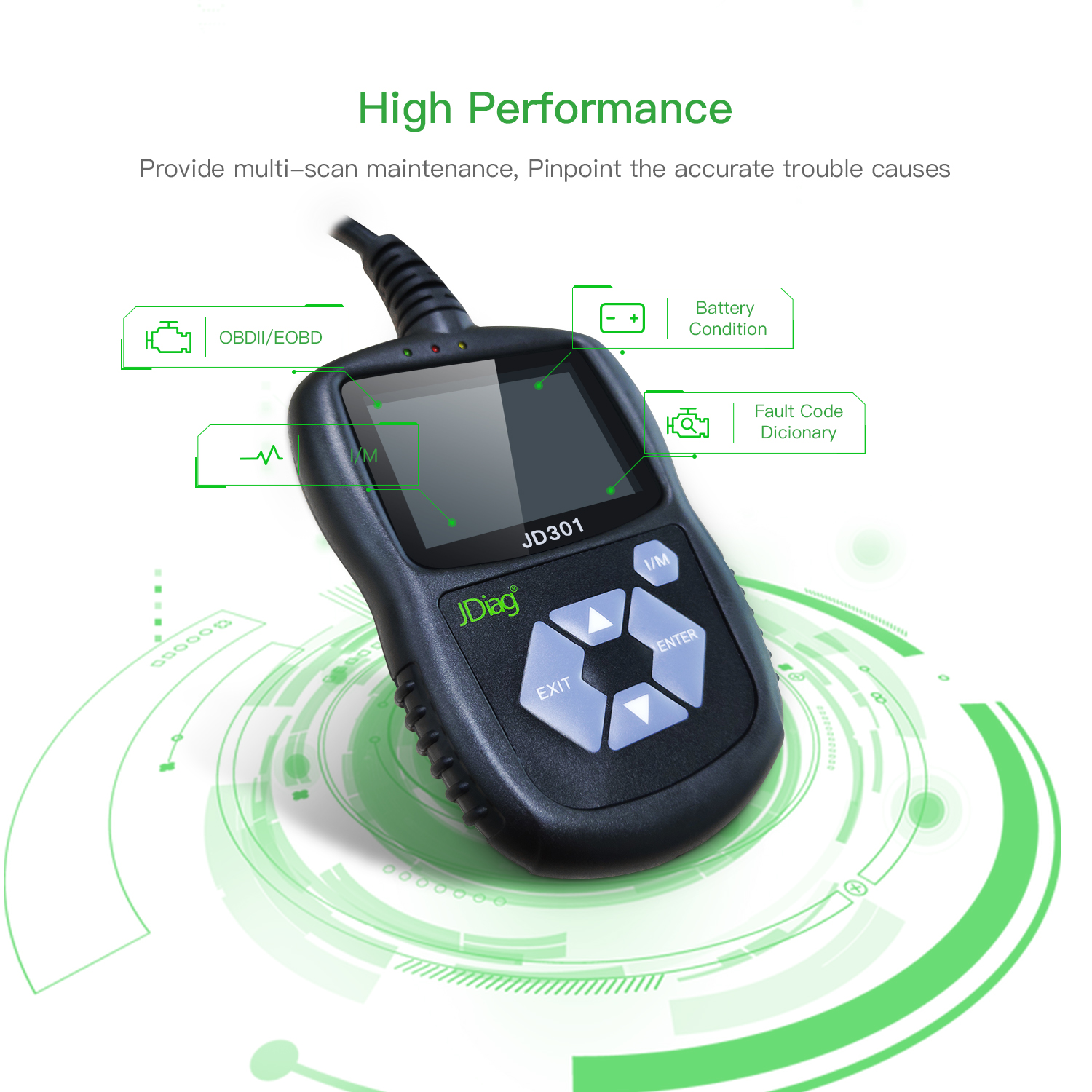

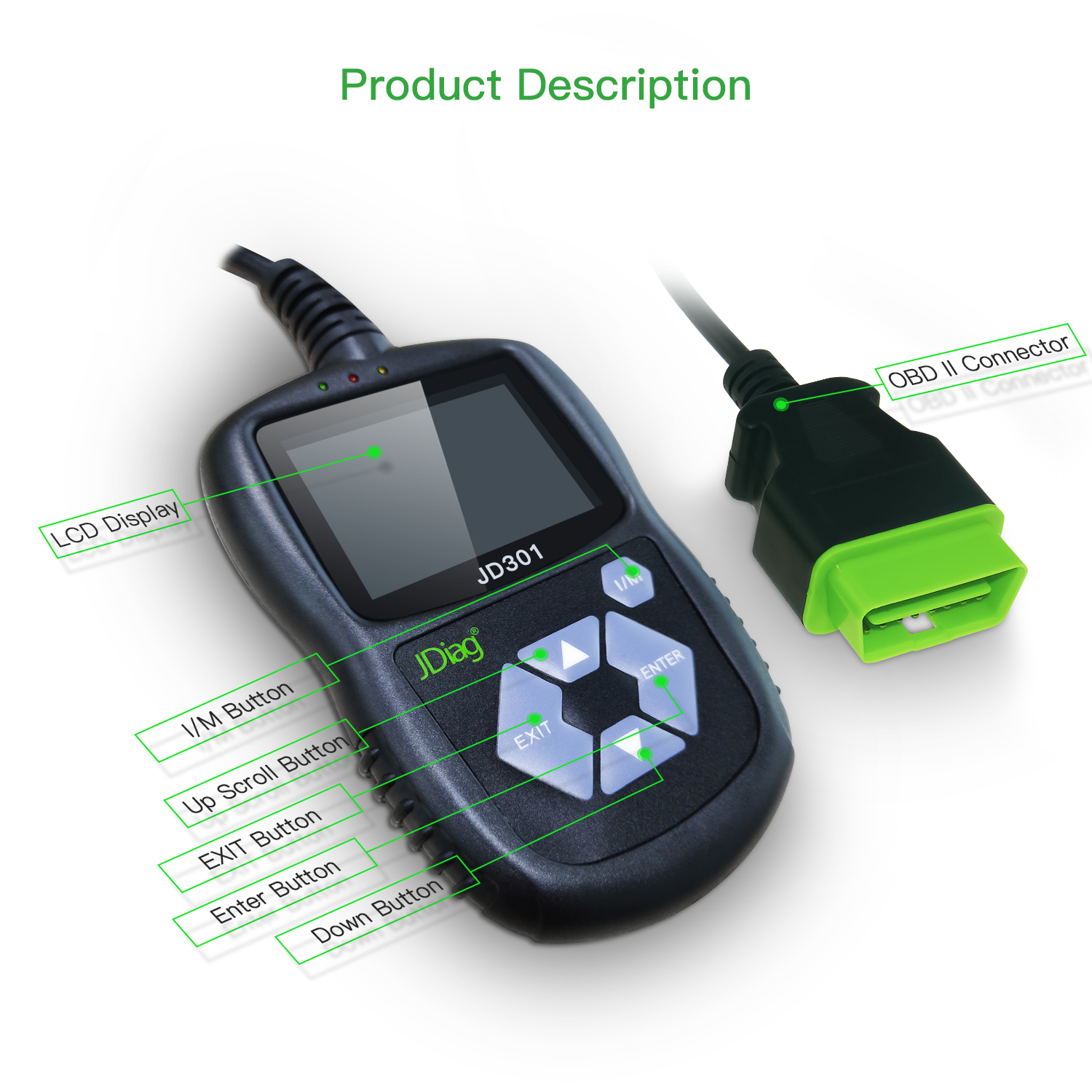

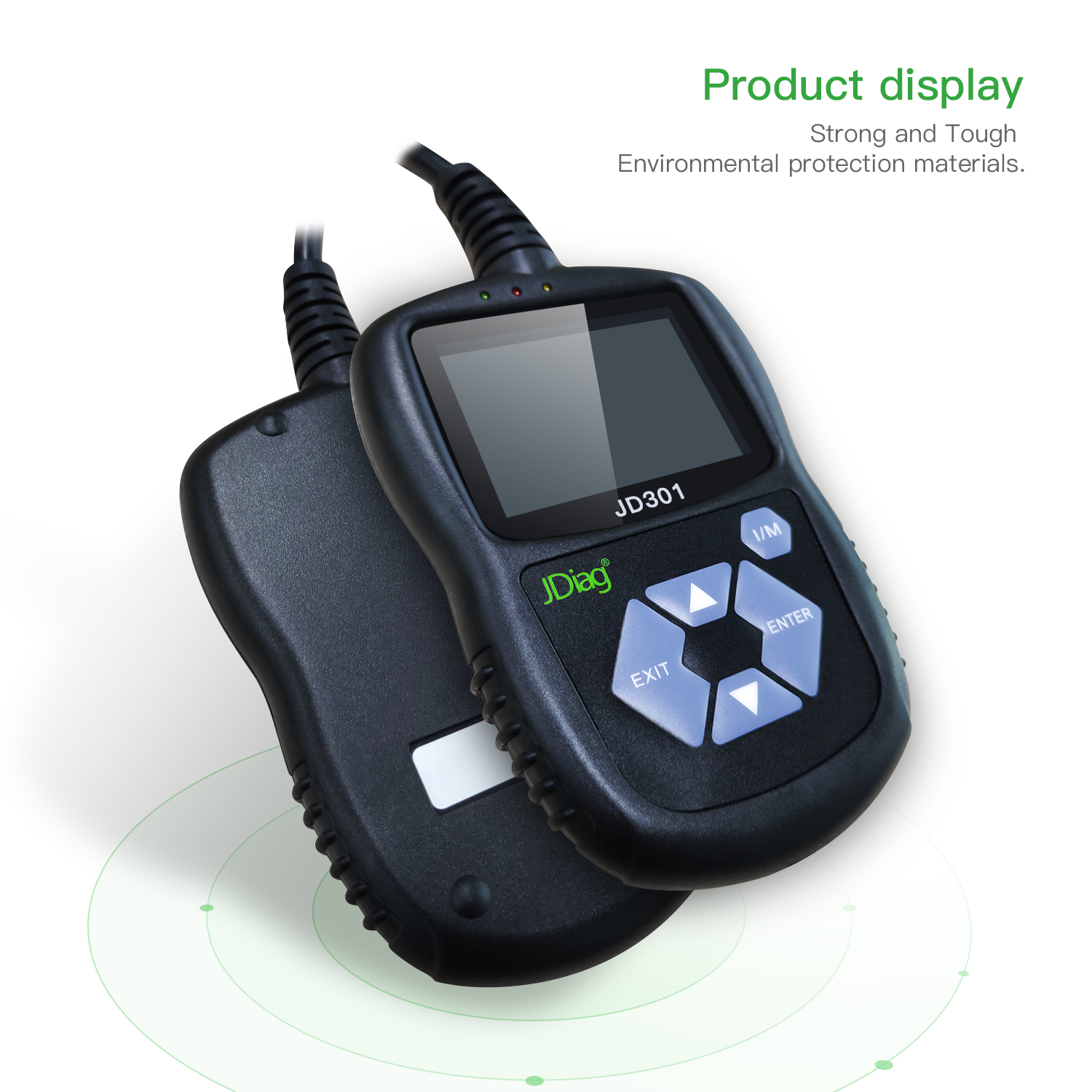

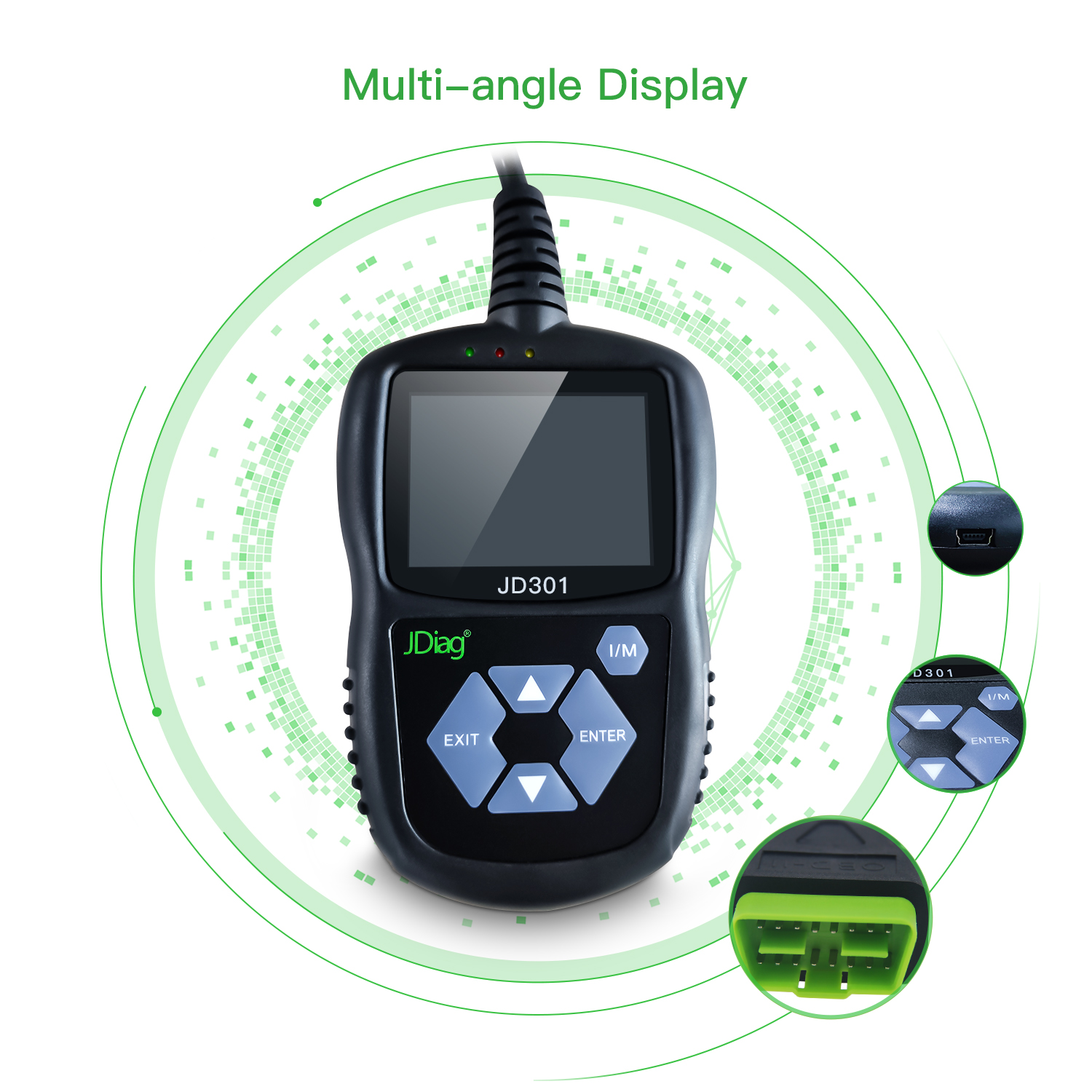

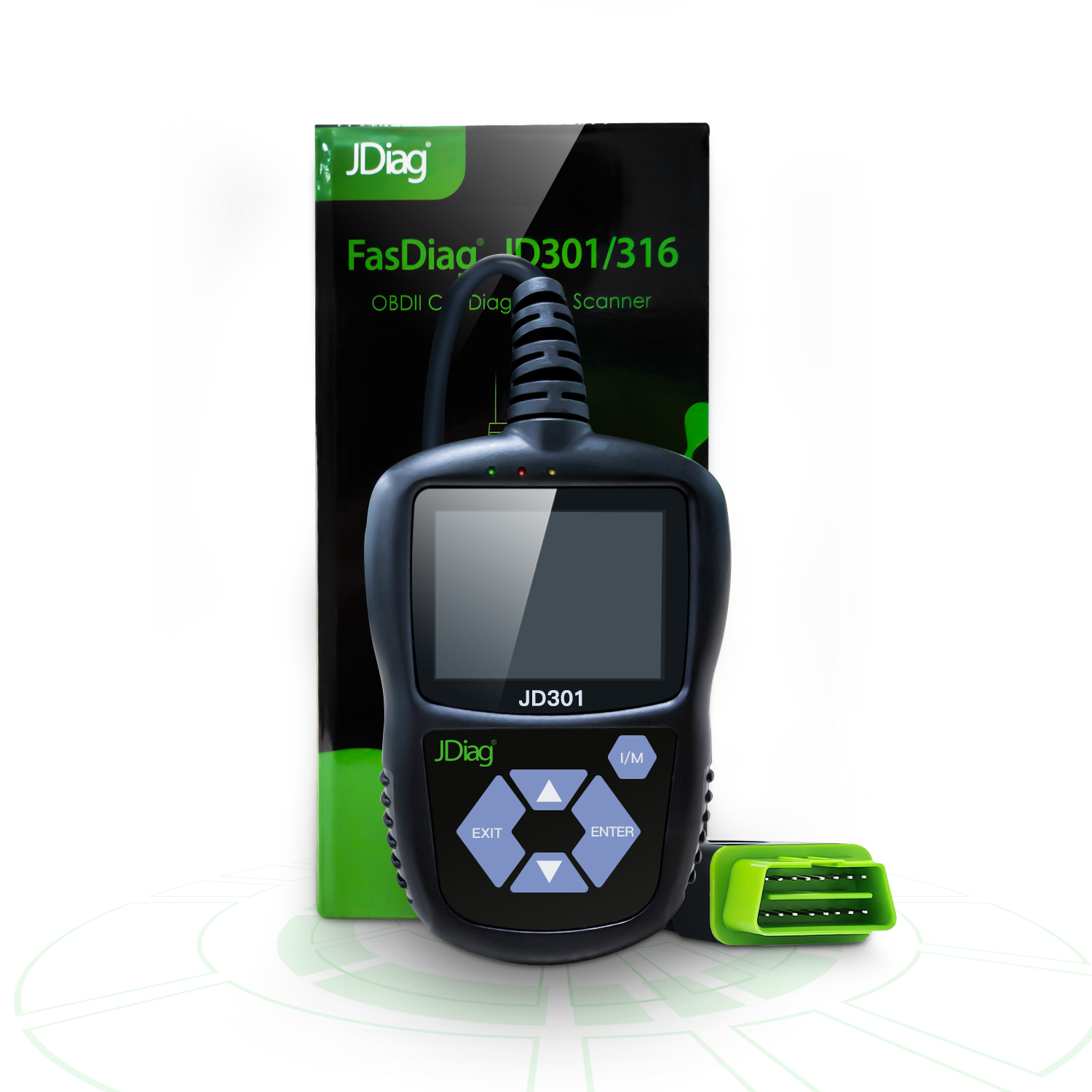

JDiag JD301 Code Reader Color Screen

Product Detail

Features:

1. Works on most 1996 and newer vehicles (OBD II & CAN)-domestic and import.
2. Build-in One-Click I/M Readiness function for quick State Emissions readiness check and drive cycle verification.
3. Bright color coded LEDs and built in speaker provide both visual and audible indication for readiness verification.
4. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes.

5. Able to read pending codes, stored codes and freeze codes.
6. Easily determines the cause of the Malfunction Indicator Light( MIL).
7. Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors.
8. Displays DTC definitions on the TFT color screen.
9. Views freeze frame data.   (Printable data)
10. Displays monitor and I/M readiness status (emissions).
11. Reads live data stream, PID more than 130 pcs.
12. Retrieves vehicle information(VIN, CIN and CVN).
13. Multilingual menu and DTC definitions- English, Spanish, French, Russian, Germany, Italian, Japanese, Chinese, etc.
14. Extremely easy to use and highly reliable.
15. Online upgrade firmware by USB cable.










Specifications

Display: 2.4'' TFT color display
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -20 to 70°C (-4 to 158 F°)
External Power: 8.0 to 18.0 V power provided via vehicle battery
Length\Width\Height: 117 mm (4.61”) \72 mm (2.83”)\18 mm (0.71”)
Weight: 0.25 KG (0.46 LB)
