    JDiag Elite J2534 Diagnostic and Coding Programming Tool

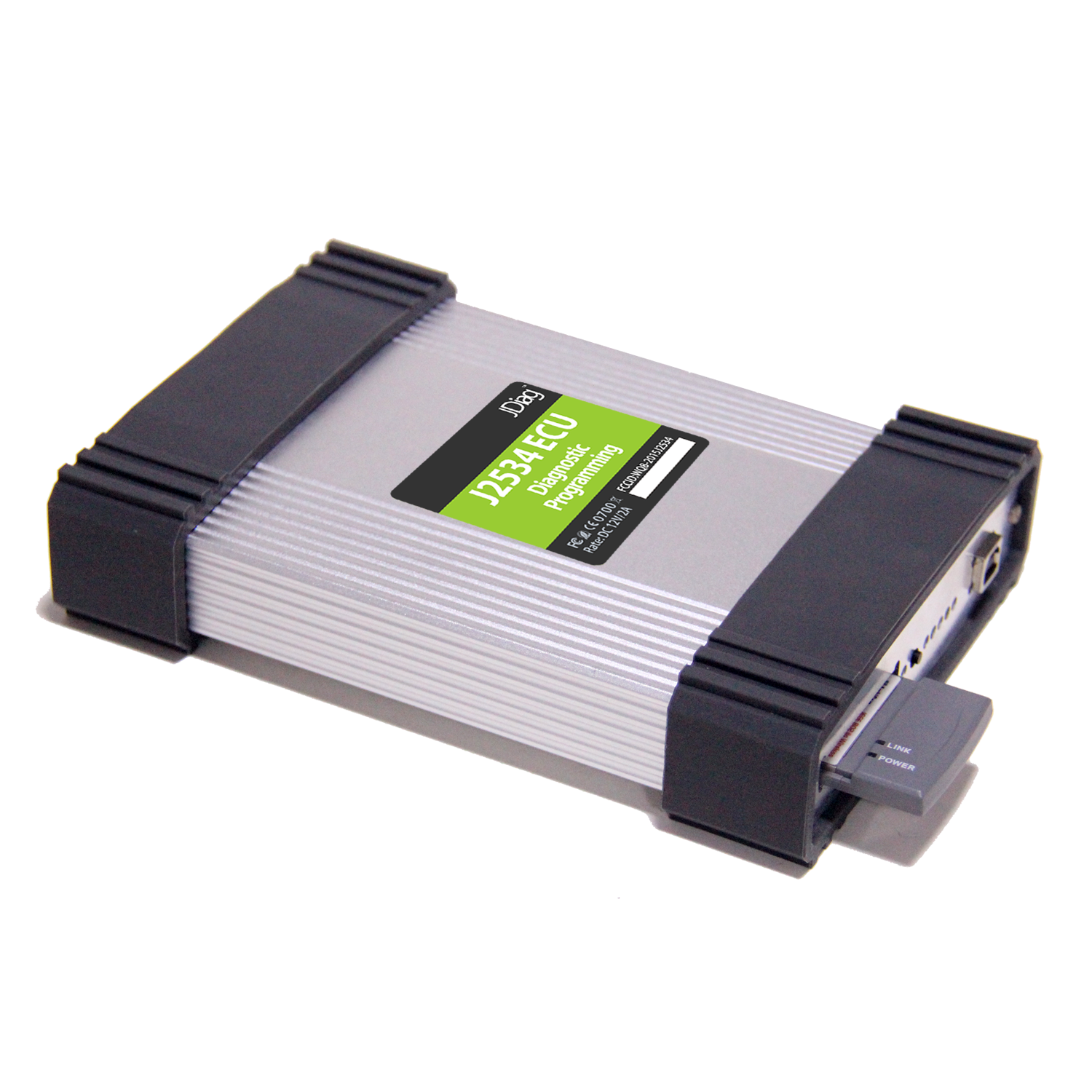

    JDiag Elite J2534 Diagnostic and Coding Programming Tool is the new gerneration J2534 tool from JDiag Inc.

    JDiag is the most validated and accepted J2534 device in the world. It has been on the market longer than any other J2534 device, it has been approved by more automakers than any other product, and has been called the "golden standard" by customers and competitors alike. The JDiag offers a wide range of capabilities to help you grow your business and retain customers including:

    • Module Programming
    • Diagnostic Functions
    • Key programming
    • Data monitoring

    Reprogramming




    JDiag is an advanced J2534-1 product for reprogramming. Use the OEM's software to offer J2534 reprogramming with ALL OEMs.
    JDiag offers extra J2534-2 support that expands reprogramming beyond just Engine/Trans support for Ford, GM, Toyota, Volvo, BMW, and some others.
    Technicians can use JDiag for Security Key systems/programming on Ford, GM, and Toyota vehicles.

    Diagnostics




    Using the OEM's own software, JDiag is compatible with Toyota Techstream, Honda HDS, Mercedes Benz Passthru, VAG ODIS, Nissan Consult, GM GDS2, BMW ISPI NEXT, and Volvo VIDA for factory diagnostics.
    As J2534 continues to grow, the number of OEM’s offering a factory diagnostic solution will likewise grow.

    Technical Support




    JDiag Tech offers free telephone and email support for all of it's J2534 products. When you need help, call on our experts that use and support reprogramming every day.
    In addition to live Tech support, JDiag offers it's users videos, FAQs, support aids, and other online technical support thru the J2534 toolbox included with each JDiag Tools.

    Technical Specs



    Bus Protocols
    CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
    2nd CAN (Dual or Single Wire)
    Ford SCP (J1850PWM)
    GM Class2 (J1850VPW)
    KWP2000 (ISO9141/14230)
    Chrysler SCI (J2610)


    PC Interfaces
    USB Cable
    Wired RJ45 Ethernet
    Wireless Card (Optional)
    Other

    Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004) SAE J2534-2 (Dec 2014)
    Compliant to ISO 22900-1 MVCI physical layer
    Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux
    6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)
    Ground pins 9, 12, or 15
    Internal Compact Flash slot (must be configured when ordering)
    Optional external Compact Flash slot


    Product Specifications
    Operating voltage: 7-26 Volts
    VCI Size: 20cm (L) x 14cm (W) x 4.5cm (H)
    Operating Temperature: Commercial Range (0 to +70 C)
    ISO22900 Compliant for GM’s Tech2WIN software

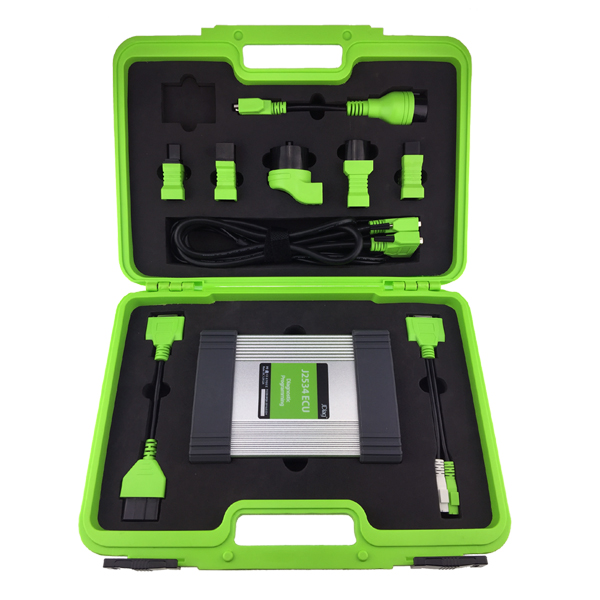

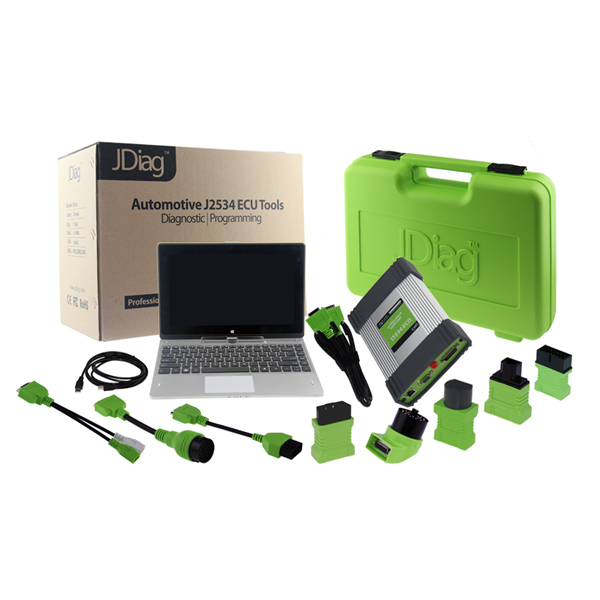

    Package List




    JDiag VCI *1
    Main Cable *1
    USB Cable *1
    Wireless Card *1 (Option)
    Adapter for old cars *7
    OBDII adapter *1

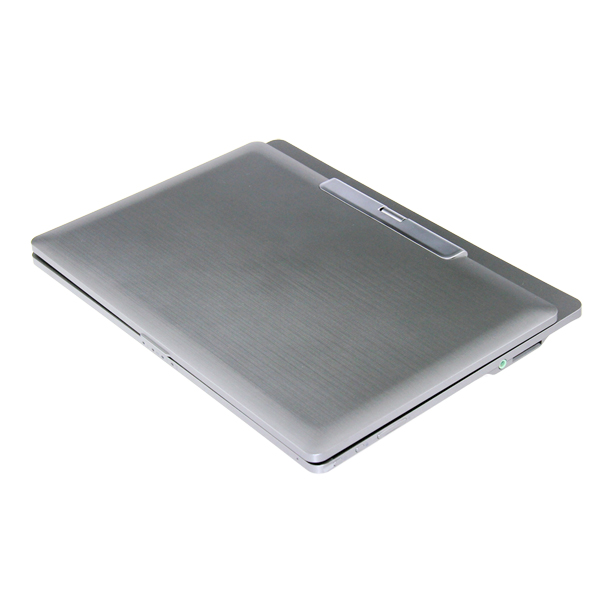

    Laptop with full software *1
    Laptop charger *1
    Plastic Case *1
